Balustrade　Wire Tend (N)






     Combination Pattern List



    ＊Material is SUS304 (SUS303 in some cases). All will be production items. Please confirm delivery date separately.

    ＊When used in coastal areas, SUS316 is available on special order. All will be production items. Please confirm delivery date separately.

    ＊one set means that a wire of the specified size is set in the metal fittings at both ends. Each part is not sold separately.



    Tension Pattern



    		Product Mounting post Wire length
    Horizontal

    6A-1 N (φ6)

    • flat bar
    • wood
    • support post
    • round pipe etc.

    L=1,000 to L=6,000

    Horizontal to Slope

    6B-1 N (φ6)

    Slope

    6C-1 N (φ6)


    Drilling size
    • End drilling dimensions: 11 to 12 mm dia.
    • Hole drilling dimensions for intermediate connection: 11 to 12 mm dia.
    • Hole drilling dimensions for intermediate through-hole: 14mm dia.
    • Hole drilling dimensions for protection pipe: 17mm dia.
    Note
    • Threading type
    • Wire cannot be cut on site
    • Body female thread effective dimension: 10mm
    • Can be connected

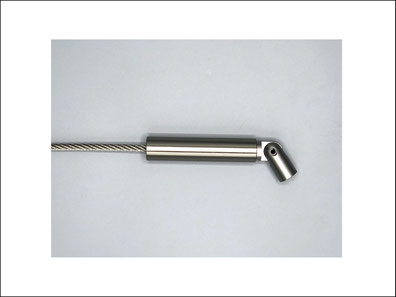

     Products Specifications (tension pattern)



    Horizontal
    • Material：SUS
    • Finishing：Centerless polishing followed by clear coat treatment
    • Wire：Φ6 SUS304 (7×7)
    • Wire Length：Standard dimensions L=1,000 to L=6,000 (in 1m increments)
    • * Please consult us for dimensions beyond the standard length.
    • Note：Effective dimension of the female thread of the body: 10 mm.
    Slope
    • Material：SUS
    • Finishing：Centerless polishing followed by clear coat treatment
    • Wire：Φ6 SUS304 (7×7)
    • Wire Length：Standard dimensions L=1,000 to L=6,000 (in 1m increments)
    • * Please consult us for dimensions beyond the standard length.
    • Note：Effective dimension of the female thread of the body: 10 mm.



     Tension pattern：horizontal tensioning





     Construction image





     Construction example




    • Construction image drawing (top)_Installation Support Columns：Flat bar
    • Construction image drawing (bottom)_Installation Support Columns：Pipe and Wood

    For both ends and joints, use M10 bolts; effective size of the female threads on the main body: 10 mm.



    ＊For installation on FB、12mm or thicker

    ＊If the FB thickness is 12 mm or less, drilling of the same diameter is acceptable up to a slope of 30°. However, if the inclination is 30° and the FB thickness exceeds 12 mm, drilling of φ15 mm or more is required.

    ＊Copa should be thread chamfered.





     Tension pattern：sloping tensioning





     Construction image





     Construction example




    • Construction image drawing (bottom)_Installation Support Columns：Pipe and Wood



    ＊If you inform us of the "pillar and FB thickness dimensions" when you place an order, we will arrange for end bolts (with tamper-evident caps), joint bolts for intermediate pillars, and wire protection pipes for intermediate pillars that match the dimensions at the same time.

    (Each sold separately)





     Work Instruction



    Work Instruction (PDF)

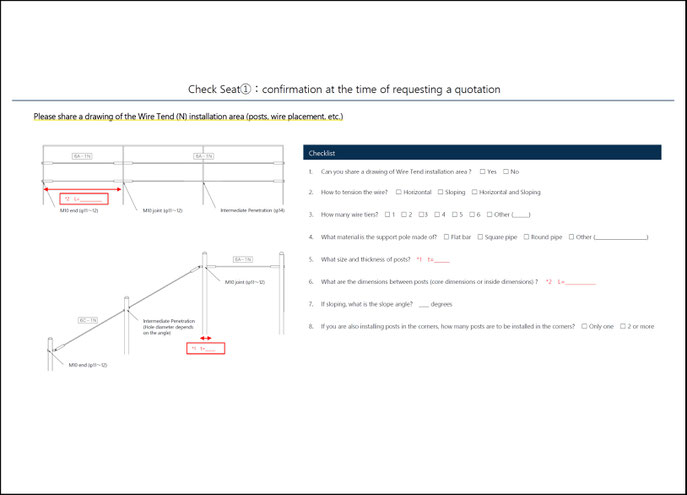

     Important information Confirmation at the time of request a quotation



    ＊ Please share of the Wire Tend (N) installation area (posts,wire placement,etc.)

    Important confirmation (PDF)
