ULTIMA Grune Fenster 【Green】



    * No handling of plants, exhibits hanging on wire, planters, soil, irrigation, after-sales maintenance, etc.

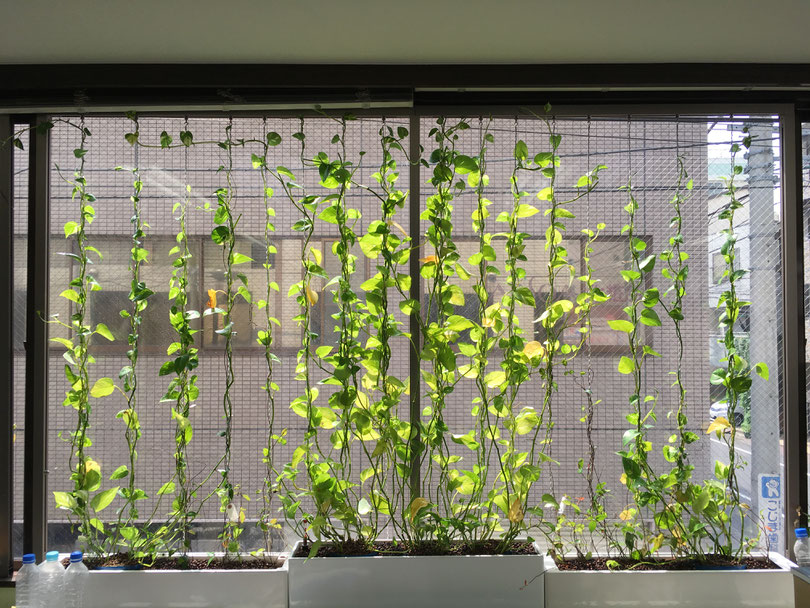

     Features of ULTIMA Grune Fenster 【Green】




     Features
    • The wire is removable, so it can be easily replaced when plants die or are replaced.
    • By using “Spiral Wire Rope Set," a wire specially designed for greening, plants can be easily entangled with the wire and enjoy growth.
    • The wire can be freely adjusted in position, so it is possible to increase or decrease the number of plants.



     Important：Preparation 【Green】



    ＊It is a prerequisite that the installation point (top end bottom end) can be screwed or drilled.



    Installation site condition

     Can be screwed or drilled at the installation site

    Standard dimensions

     Width within 2,000mm × Height no limitation

    ＊If the width is more than 2,000mm, it is possible to increase the number of rails.


     ① Measure the height of the installation location!　
    • Measure the ceiling height of the desired installation location using a tape measure.
    • Since the ceiling height may vary depending on the location, be sure to measure the ceiling height of the desired installation location.
    • Measure the ceiling vertically and straight to the ceiling, and take detailed measurements in millimeters.
     ② Please give us the wide dimension.
    •  If you need more than 2,000 mm, we can increase the number of rails.
     ③ Please inform us of the number of wire set to be installed plus the measured height.



     Products_specifications





     Rail





    Product

    		Rail UIA-PR S Rail UIA-PR B End Caps (both ends)
    Color Silver  Bronze Black
    Material Aluminum extrusion molding Natural rubber
    Size L=900mm×2sets × D10mm × H23mm -



     Spiral Wire Rope Set 【Indoor】







    		Spiral Wire Rope Set L=1,000 【Indoor】

    Spiral Wire Rope Set L=1,500 【Indoor】

    Spiral Wire Rope Set L=2,000 【Indoor】

    Spiral Wire Rope Set L=2,500 【Indoor】

    Spiral Wire Rope Set L=3,000 【Indoor】

    Spiral Wire Rope Set L=3,500 【Indoor】

    Wire Length L=～1,000mm L=1,000mm ～ 1,500mm L=1,501mm ～ 2,000mm L=2,001mm ～ 2,500mm L=2,501mm ～ 3,000mm L=3,001mm ～ 3,500mm
    Material Wire：stainless 304 (7×7、12 Nylon resin coating)、　Metal：stainless、　Grip：brass
    Included Spring hook with gripper
    Note Wire rope size：φ6 (core wire：φ2.4)

    ＊ Delivery dimensions are ＋200mm of the height dimension.

    ＊ Example: L=2,400mm (height dimension) ⇒ L=2,600mm (delivery dimension) ⇒ Spiral Wire Rope Set L=3,000

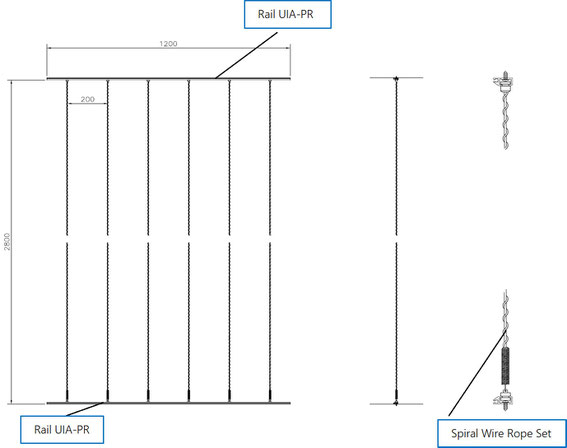

     Example of reference



     Example：W1,200 × H2,800　＊wire rope spacing@200
    • Spiral Wire Rope Set L=3,000：6 sets
    • Rail UIA-PR (L=900×2)：2 sets
     Note
    • The rail will be a fixed length L=900, but it can also be cut on site.
    • The screw pitch for rail mounting is 3 places for L=900.
    • The pitch of the wire set is optional.

    Instruction (PDF)
